OTAS: Open-vocabulary Token Alignment for Outdoor Segmentation

Simon Schwaiger1,2, Stefan Thalhammer2, Wilfried Wöber2 and Gerald Steinbauer-Wagner1

This work was supported by the city of Vienna (MA23 – Economic Affairs, Labour and Statistics) through the project Stadt Wien Kompetenzteam für Drohnentechnik in der Fachhochschulausbildung (DrohnFH, MA23 project 35-02).

1 Graz University of Technology, Faculty of Computer Science and Biomedical Engineering, Institute of Software Engineering and Artificial Intelligence, Inffeldgasse 16b/II, 8010 Graz, Austria

2 University of Applied Sciences Technikum Wien, Faculty of Industrial Engineering, Research Group Digital Manufacturing, Automation and Robotics, 1200 Vienna, Austria

schwaige@technikum-wien.at
Website
Code
arXiv

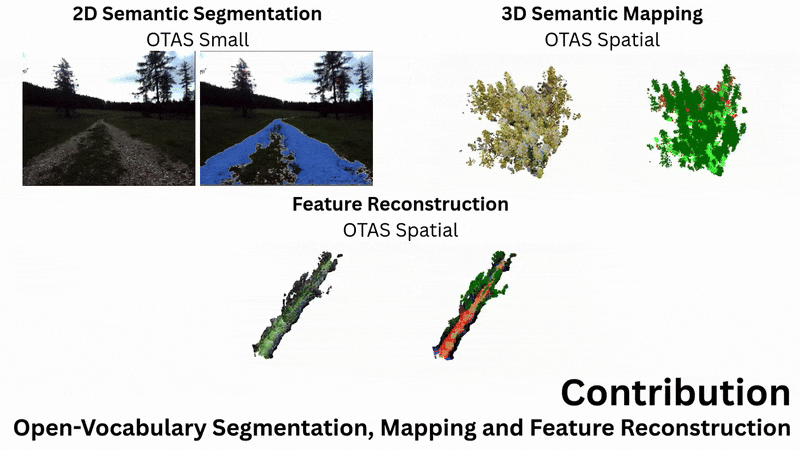

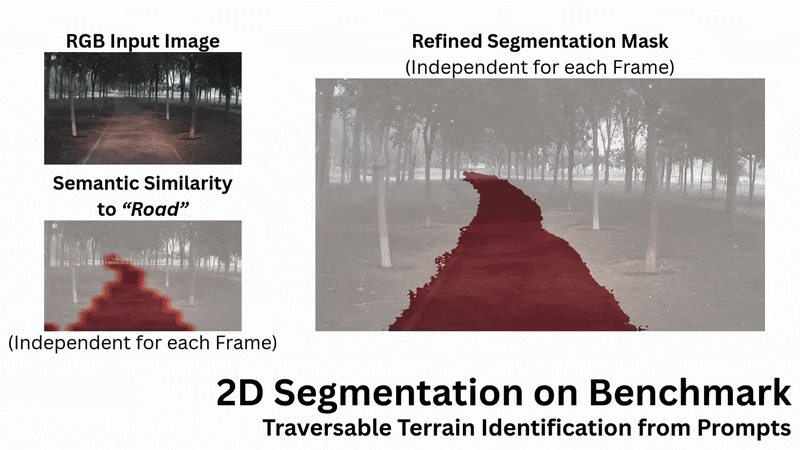

OTAS Capability Overview GIF OTAS Semantic Mapping Demo GIF

Abstract

Understanding open-world semantics is critical for robotic planning and control, particularly in unstructured outdoor environments. Existing vision-language mapping approaches typically rely on object-centric segmentation priors, which often fail outdoors due to semantic ambiguities and indistinct class boundaries. We propose OTAS—an Open-vocabulary Token Alignment method for outdoor Segmentation. OTAS addresses the limitations of open-vocabulary segmentation models by extracting semantic structure directly from the output tokens of pre-trained vision models. By clustering semantically similar structures across single and multiple views and grounding them in language, OTAS reconstructs a geometrically consistent feature field that supports open-vocabulary segmentation queries. Our method operates in a zero-shot manner, without scene-specific fine-tuning, and achieves real-time performance of up to ~17 fps. On the Off-Road Freespace Detection dataset, OTAS yields a modest IoU improvement over fine-tuned and open-vocabulary 2D segmentation baselines. In 3D segmentation on TartanAir, it achieves up to a 151% relative IoU improvement compared to existing open-vocabulary mapping methods. Real-world reconstructions further demonstrate OTAS' applicability to robotic deployment. Code and a ROS node are available on GitHub.

Citation

If you use this work in your research, please cite our paper:

@misc{Schwaiger2025OTAS,
    title               = {OTAS: Open-vocabulary Token Alignment for Outdoor Segmentation. \textit{arXiv preprint arXiv:2507.08851}},
    author              = {Simon Schwaiger and Stefan Thalhammer and Wilfried Wöber and Gerald Steinbauer-Wagner},
    year                = {2025},
    url                 = {https://arxiv.org/abs/2507.08851}
}
